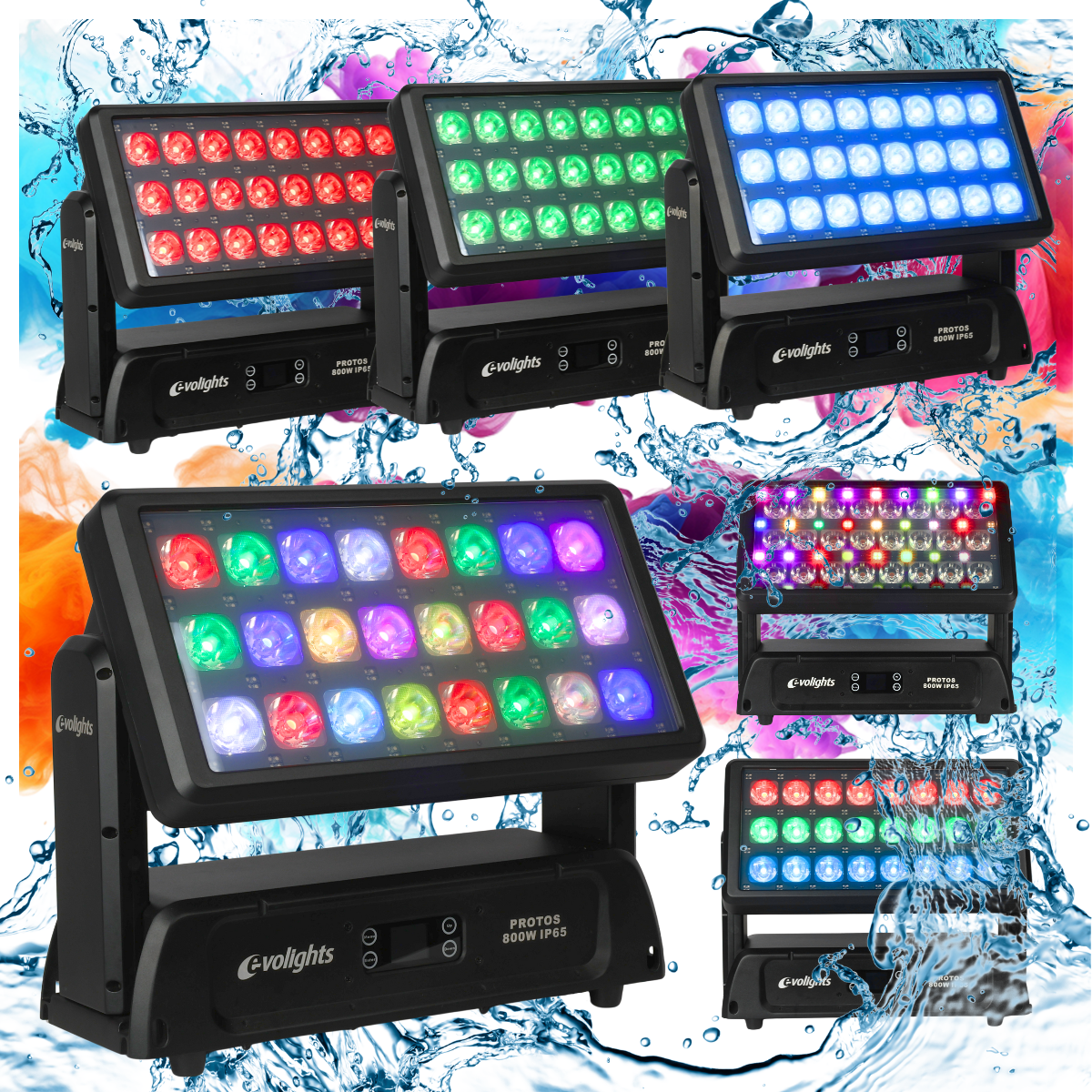

EVOLIGHTS PROTOS 800W IP65 wall washer outdoor lighting LED Art-Net DMX RDM sACN 24x25W RGBL LED 4-in-1 + 144x0.3W RGBW LED aura effect

⭐ Dependable outdoor lighting for special tasks

Are you looking for professional stage lighting that can handle harsh weather conditions ❓ Evolights Protos 800W is an indispensable wall washer for organizers of outdoor events, festivals, mappings as well as for architectural installations, building lighting and city events ✅ Thanks to its IP65 protection rating, you can use it outdoors all year round, regardless of the weather ❗

Included:

➡️ wall washer,

➡️ powercon TRUE1 power cord,

➡️ DMX signal cable,

➡️ Ethernet (RJ-45) signal cable,

➡️ 2 omega mounting brackets,

➡️ safety cable,

➡️ user manual (PL/ENG).

⭐ Impressive power and color precision

The device is equipped with 24 RGBL (red, green, blue, and lime) LEDs with a power of 25W and 144 RGBW LEDs with a power of 0.3W, creating a spectacular aura effect ✨ Thanks to Pixel Control divided into 24 (RGBL) and 36 (RGBW) sections and advanced Tilt calibration, you get full control over the direction and dynamics of the light ✔️

⭐ Advanced effects that attract attention

The frost filter, strobe effects (up to 25 Hz), dynamic macros, Red Shift and 10 dynamic effects with bidirectional rotation provide incredible flexibility of the light image ❇️ It is the perfect choice for stage technicians, rental companies and mapping implementers ✳️

⭐ Full compatibility and remote control

Manage the device via Art-Net, DMX, RDM or sACN — the choice is yours ⚡ The control panel with a color LCD screen and intuitive buttons allows you to quickly configure settings without the need for a computer ‼️

⭐ Safe operation in all conditions

Magnesium alloy housing, quiet fan with three operating modes, thermal protection system and the capability of operating in temperatures from -30°C to +45°C make this device ready for action even in the most demanding surroundings ✴️ Additionally, safety cable and mounting brackets protect both the equipment and the production crew ✅

⭐ Wall washer ready for any challenge – choose quality you will appreciate

With full light control, precise dimmer (16-bit), IP address settings, Art-Net to DMX signal conversion and flexible DMX channel modes (15 to 255), the model is perfect for both advanced installations and mobile stage applications ☑️ Order now and see why event industry professionals choose Evolights Protos 800W‼️

Technical specifications:

• Device type: wall washer outdoor lighting IP65 LED Art-Net DMX RDM sACN with mounting brackets and safety cable
• Light source: 24x25W RGBL LED 4-in-1 + 144x0.3W RGBW LED (aura effect)
• Light source sections:
• Pixel Control: 24 (RGBL), 36 (RGBW)
• Horizontal: 3 (RGBL), 4 (RGBW)
• Vertical: 8 (RGBL), 9 (RGBW)
• Aura effect color palettes: RGB, RGBW
• Basic beam angle: 6°
• Extended beam angle: 22°
• Illuminance:
• distance 3 m, beam diameter 36 cm, light spot diameter 65 cm:
• all colors: 55600 lx
• red color: 7590 lx
• green color: 20100 lx
• blue color: 3900 lx
• lime color: 33700 lx
• 100% frost filter: 1230 lx
• distance 5 m, beam diameter 60 cm, light spot diameter 105 cm:
• all colors: 25100 lx
• red color: 3570 l
• green color: 8930 lx
• blue color: 1710 lx
• lime color: 15100 lx
• 100% frost filter: 438 lx
• distance 8 m, beam diameter 95 cm, light spot diameter 170 cm:
• all colors: 10500 lx
• red color: 1590 lx
• green color: 3770 lx
• blue color: 703 lx
• lime color: 6340 lx
• 100% frost filter: 174 lx
• Color rendering index (CRI, Ra): ≥80
• White color temperature: 12300K
• CTO filter presets: 1800/2000/2500/2700/3000/3200/3500/4000/4500/5000/5600/6000/6500/7200/8000 K
• PWM frequency: 4/8/16/24 kHz
• Dimmer: electronic, Dimmer Fine (16-bit precision), full range (0-100%), 3 speed modes (standard, fast, slow), 3 dimming curves (linear, square, S-curve)
• Frost filter: linear, electronic, 0-100%, diffusing glass (smart glass)
• Strobe effect: 0-25 Hz, adjustable operating frequency, 6 effects (Pulse Random, Ramp Up Random, Ramp Down Random, random, Strobe Break, synchronized)
• White color temperature compensation: yes
• Color macros: 42 macros
• Dynamic effects: 10 effects, loop of effects 1-10, effect indexing, bidirectional rotation, adjustable speed
• Red Shift: yes
• Pixel Invert: yes
• Tilt movement: 0-180°, Tilt Fine (16-bit precision)
• Tilt movement reversal: yes
• Detailed Tilt movement calibration: yes
• Automatic position correction: yes
• Control: Art-Net, DMX, RDM, manual, sACN
• Control panel: color LCD display + 4 buttons
• Operation modes: Art-Net, DMX, master/slave
• DMX data connectors: Seetronic 3-pin XLR male (input) / female (output)
• Ethernet data connectors: Seetronic RJ-45 input / output
• Power connectors: Seetronic powercon TRUE1 male (input) / female (output)
• DMX channels: 15/27/47/87/255
• Signal source selection: DMX, mixed mode, Art-Net
• Universes: 1-32767
• Art-Net/sACN to DMX signal conversion: yes
• IP modes: DHCP, static
• IP address and subnet mask setting option: yes
• Power supply voltage: AC 100-240V, 50/60 Hz
• Power consumption: 800W
• Fuse: F20A250V
• IP protection rating: IP65
• Cooling system: active, silent fan, 3 fan modes (auto, silent, full power)
• Overheating protection system: yes
• Device temperature display: yes
• Operating ambient temperature: -30°C ~ 45°C
• Display backlight control: continuous/10 seconds/30 seconds/1 minute
• Display orientation reversal: yes
• Button lock: yes
• Device behavior in case of DMX signal loss: last settings retained, blackout
• Device reset: yes
• Factory reset: yes
• Housing material: powder-coated magnesium alloy
• Mounting bracket material: aluminum alloy + iron, powder coated
• Device dimensions: 49.341 x 17.441 x 37.5 cm
• Packaging dimensions: 52 x 29 x 71.5 cm
• Net weight: 19.5 kg
• Gross weight: 21.5 kg

Original packaging and filling.
