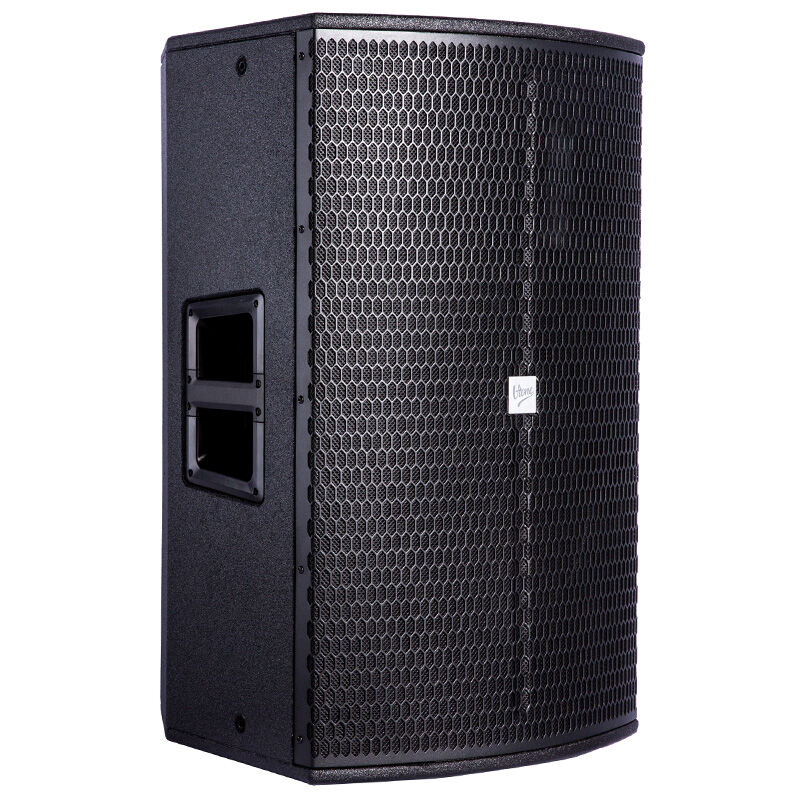

V-TONE NBX-115A active loudspeaker 15" DSP
⭐ Active loudspeaker
V-tone NBX-115A is a professional 2-way active loudspeaker with 500 watts RMS (1000 watts peak) with a 15-inch mid-bass driver, 1-inch tweeter and built-in DSP digital sound processor. The equipment is ideal as ✅ stage sound system for concerts, various types of performances, shows and presentations, community centers, dance clubs and discos as well as a PA system for mobile DJs and bands.
⭐ Pro class sound system
V-tone NBX-115A loudspeaker features a powerful amplifier cooperating with a speaker equipped in 15-inch diaphragm and a 1-inch tweeter. The sound system is capable of producing a sound wave with a pressure level of ✅ 128 dB. The wide frequency response provides excellent tonal depth throughout the audible range, and a built-in switchable limiter feature with LED indicates any signal distortion.
⭐ Loudspeaker with DSP processor
V-tone NBX-115A has a built-in digital sound processor (DSP) for additional audio equalization. All parameters are displayed on a convenient and easy-to-read LCD display. Depending on your needs, the sound system can operate as ✅ front speaker, floor monitor or satellite. Setting the location (Field, Monitor, Bracket) and selecting the appropriate operation mode (Normal, Live, Club, Speech) in the menu guarantees perfect sound reproduction at concerts, clubs, discos, as well as during speeches, lectures and presentations. The DSP also allows the use of a high-pass filter (HPF) for 150, 120, 100 and 8 Hz.
⭐ Flexibility of V-tone NBX-115A connections
The back panel of the V-tone NBX-115A speaker features a switchable microphone/line combo input (XLR/mono 6.35 mm jack), to which we can connect various types of ✅ dynamic microphones, guitars, basses, keyboards, drum machines, CD players, DAT tape recorders or other line-level output devices. Below is a 3-pin XLR input and XLR output with Link/Mix switch. Volume control of the inputs is controlled by separate potentiometers.
⭐ Lightweight loudspeaker for DJ or band
Thanks to its relatively lightweight yet very sturdy cabinet, V-tone NBX-115A loudspeaker is ideal for mobile applications. ✅ The device can be installed on stands with 35 mm threads. Convenient handling is provided by ergonomic handles located on the sides of the body. Rubber feet eliminate any type of ground vibration and the metal grille covered with a special material effectively protects the speakers from dust and any mechanical damage.
Technical specification:
- Power supply: AC 100-240V, 50/60 Hz
- Power: 500W RMS, 1000W peak
- Max SPL: 129 dB/1W/1M
- Input sensitivity: -10 dBV
- Frequency range: 45 Hz - 20 kHz
- Tweeter: 1"
- Mid-bass speaker: 15"
- Frequency of band division: 1.9 kHz
- Inputs: combo XLR/6.35 mm jack, XLR 3-pin
- Outputs: XLR
- DSP processor: yes
- Horizontal dispersion: 90°
- Vertical dispersion: 60°
- Mounting brackets: 9xM8
- Carrying handles: 2 on the sides
- Pole socket: 35 mm
- Cabinet: 15 mm birch multilayer board
- Dimensions: 73 x 44 x 43.9 cm
- Weight: 26.3 kg
Original packaging and filling.
Brand | V-tone |
---|---|
Product state | new |
Color | black |
Speaker type | active |
Woofer diameter | 15" |
Tweeter diameter | 1" |
Ways | two-way |
SPL | 129 dB |
Power rating | 500W RMS, 1000W peak |
Frequency response (Hz) | 45-20000 |
Signal transmission | wired |
Power supply type | mains supply |
Power connector | IEC |
Included | active loudspeaker, power cable, user manual |
Master carton | 1 |
